How comma coating works
Comma coating meters fluid with a rigid, comma-shaped blade positioned against a backing roll. Fluid is supplied to a pool behind the blade; as the web passes through, the gap between the comma edge and the substrate sets the wet coat thickness. The comma profile gives the blade far greater stiffness than a conventional knife, holding a stable gap under pressure — which is what makes the method capable of uniform coating at higher viscosities and heavier coat weights than many pre-metered approaches handle comfortably.
Where comma coating wins
Comma stations shine where slurry or adhesive viscosity is high, coat weight is heavy, and forgiving operation matters: the open pool tolerates formulation variation and entrained air better than a sealed die, changeover between products is fast, and the mechanical simplicity keeps maintenance straightforward. In battery work, comma coating remains common for electrode slurries — particularly in pilot and flexible-production settings where formulations change frequently.
How IMC engineers comma stations

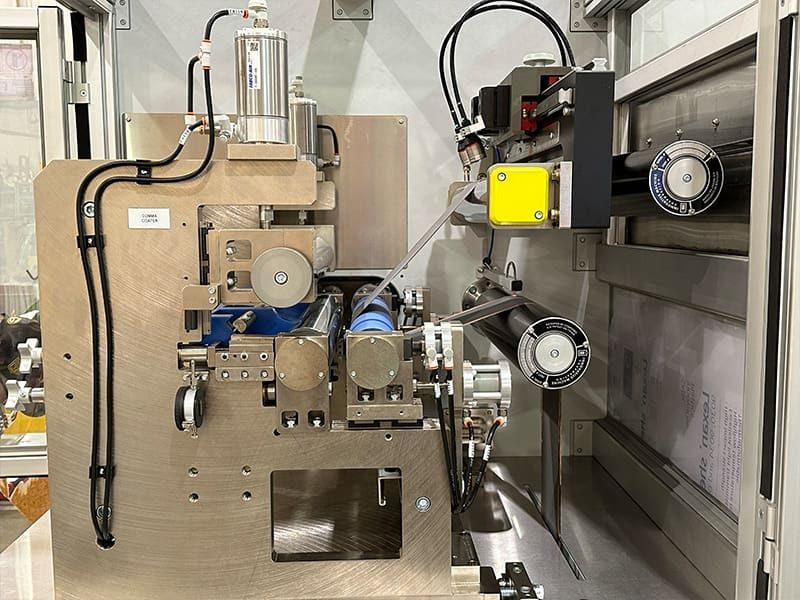

The method is mechanically simple, but coating uniformity at production width still depends on the machine. IMC comma stations are built around precision-ground comma blades and backing rolls held to tight TIR tolerances, rigid vibration-damped mounting, and micrometer-class gap adjustment with positive locking. At production widths, blade deflection and gap drift are what separate a uniform coating from a crowned one. Comma heads are available on IMC lab, pilot, and production coaters, interchangeable with slot die and gravure on the same platform.
Comma vs. slot die
Slot die is pre-metered, with coat weight set by pump flow, and excels at thin, high-precision, sealed-system coating. Comma is gap-metered: simpler, more tolerant, and strong at heavy coat weights and high viscosities. Many IMC customers run both, matched to the layer and the formulation. Our lab in Birmingham can trial your fluid on both methods side by side.
Applications
- Battery electrode slurries
- Pressure-sensitive adhesives
- Thick functional coatings
- Saturants
- Specialty films
